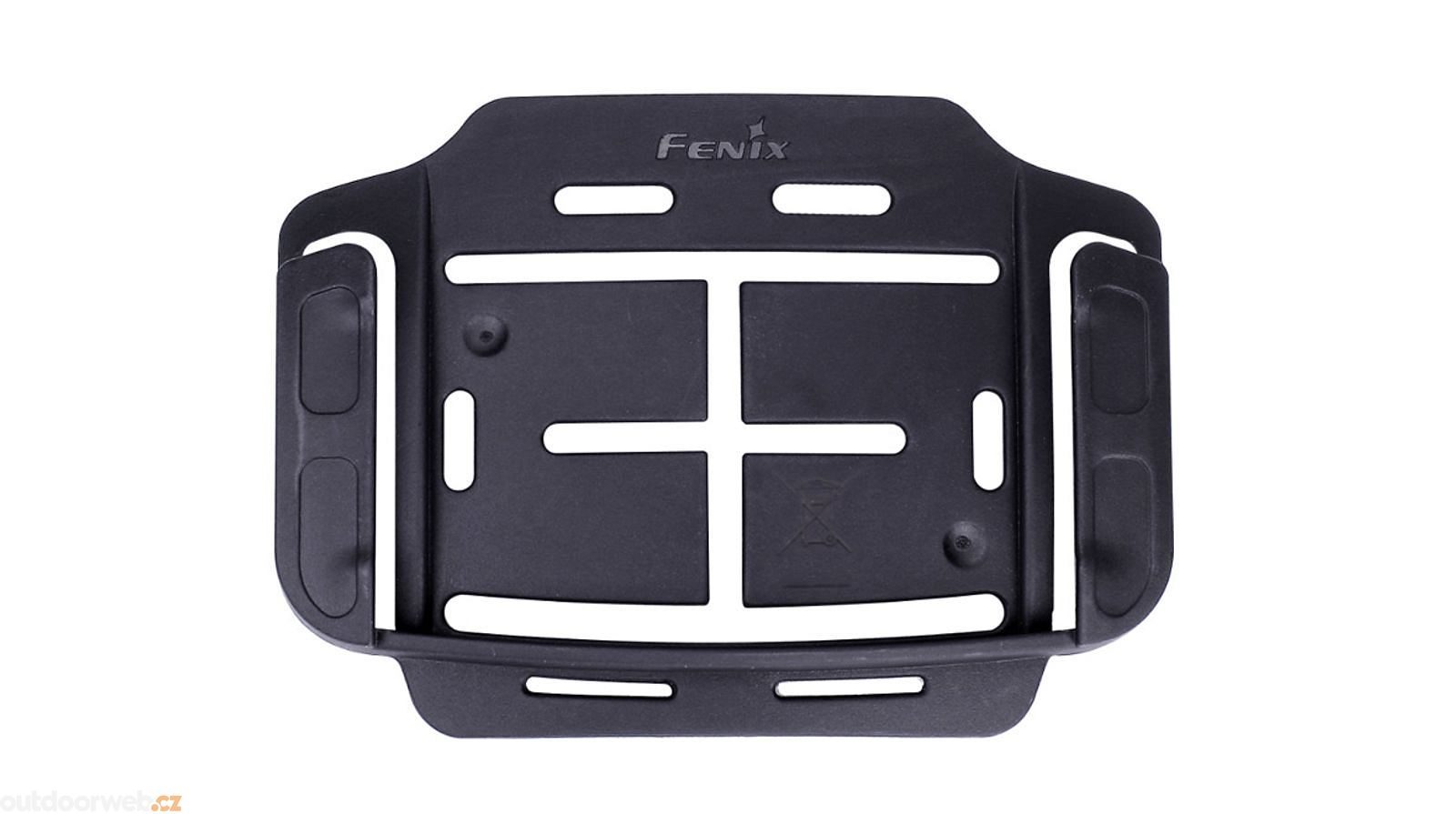

Fenix ALG-03 V2.0 is used to easily attach Fenix HL55, HL60R, HM60R, HM61R, HM65R (not compatible with HM65R-T), HM70R and HM71R headlamps to outdoor, sports and work helmets. The holder plate sticks to the helmet with the supplied double-sided sticker, the headlamp without straps then simply slides into it. Don't know how to take the strap off or on your headlamp? Check out our video tutorial.3

Tip: For the HM61R headlamp we recommend purchasing a second holder, this way you won't have to remove the straps from the original holder and just swap the headlamp in the holders.

Package contents: helmet mount, 3M double-sided tape (white, 2 mm thick), TESA double-sided tape (blue, 1.3 mm thick).

• Mount made of tough plastic (nylon).
• Dimensions: 90 mm (length) x 65 mm (width) x 10 mm (height).
• Weight 18 grams.

Use
Adhere the assembly to the helmet using one of the double-sided strips and allow the adhesive to work for 72 hours. The headband can be attached to the mount by simply sliding it in. Select a spot on the helmet that best follows the shape of the mount and the headlamp will adjust to the desired direction of light. The area on the helmet must be clean and dry before gluing.

Caution
If mounting on a helmet with vents and ribbing (such as a bicycle helmet), it depends on the specific design of the helmet whether the contact area will be large enough to firmly glue the holder. The sticker does not need to be attached over the entire surface area, but for a very rugged helmet the surface area may not be sufficient.
