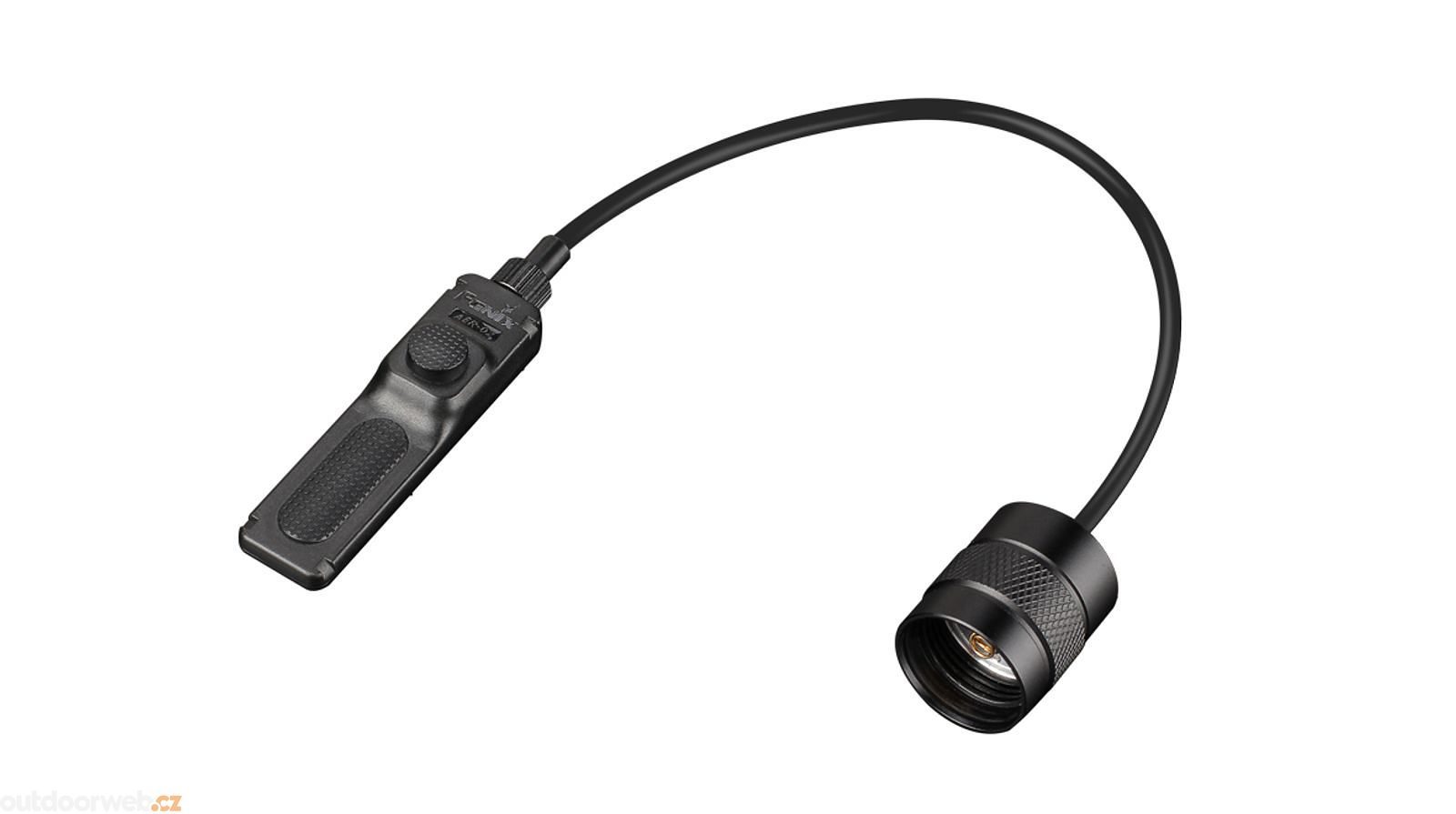

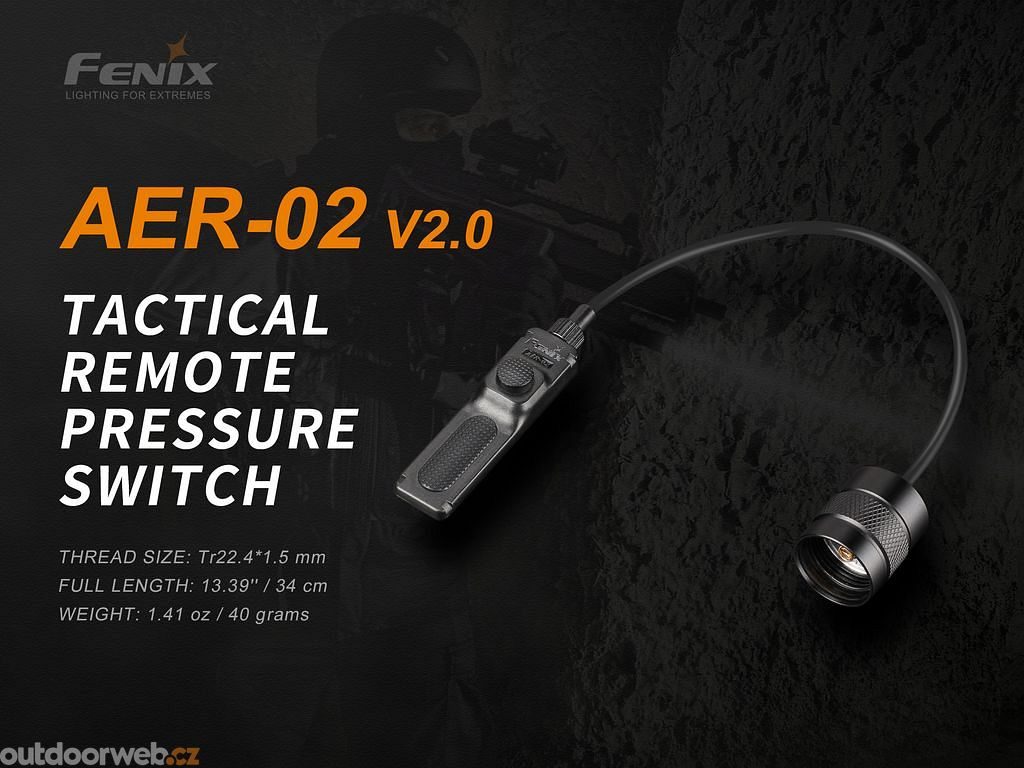

Tactical cable switch AER-02 V2.0 for Fenix FD30, FD41, PD32 XP-L (but not for older versions of PD32), PD35, UC35, TK09, TK15, TK22 (only older versions, not TK22 V2.0) and other models with trapezoidal thread. Suitable for use with a long gun mounted flashlight.

There is a button on the end of the cable for permanent illumination and a flat pressure switch with momentary activation. Applying pressure to the flat switch lights the flashlight and turns it off when released. The switch also has Velcro, which helps you place it anywhere on the gun.

• Legal two-year warranty.
• Cable made of flexible polyurethane.
• Cable length 23 centimeters.

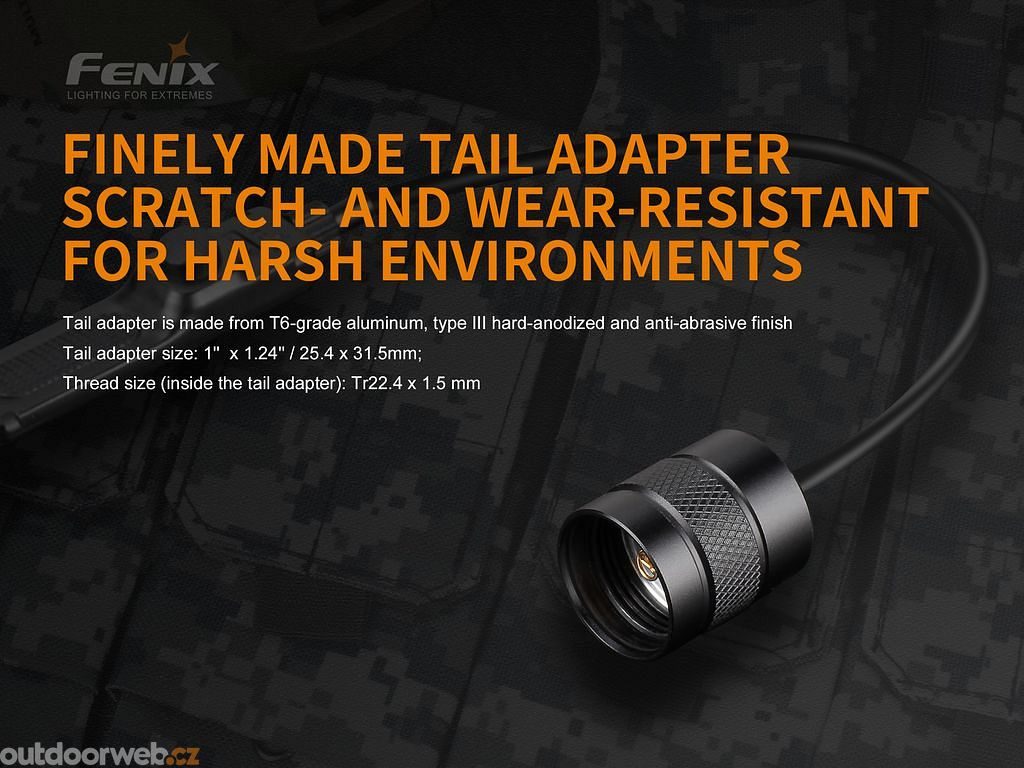

• End screw part made of high quality T6 aluminium alloy.
• Hard Type-III anodization.
• Highly wear-resistant flat-head thread.

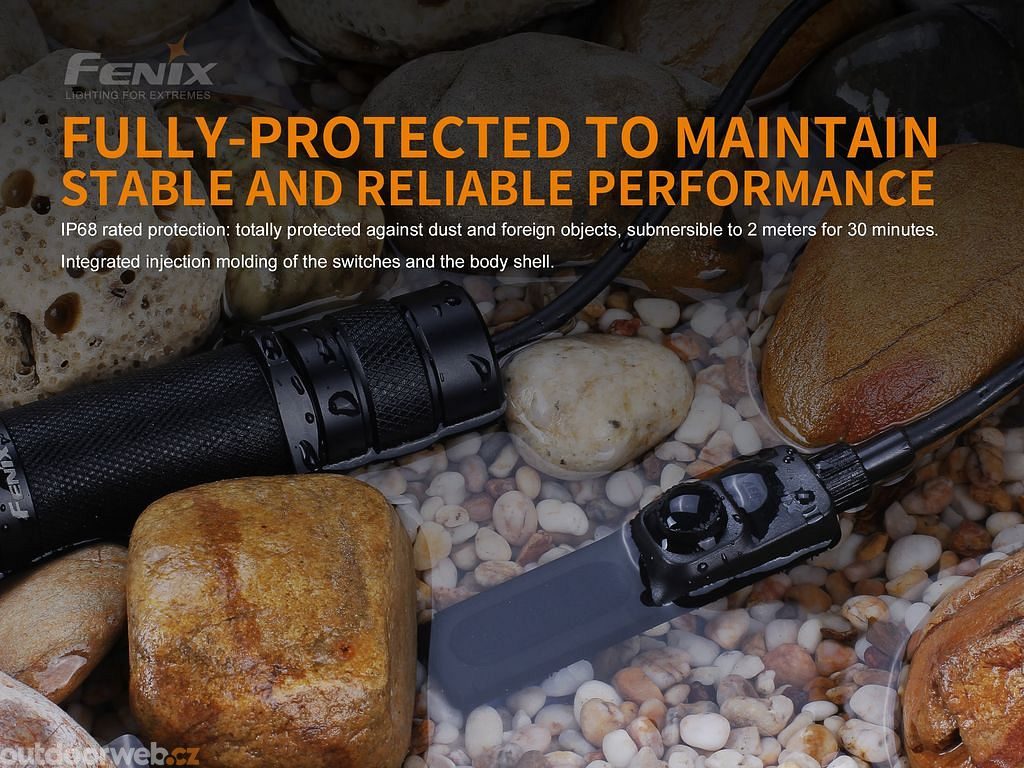

• Waterproof to IP68 standard.
• Dimensions of the screw-in part: 3.15cm (length) x 2.54cm (diameter).
• Weight 40 grams.

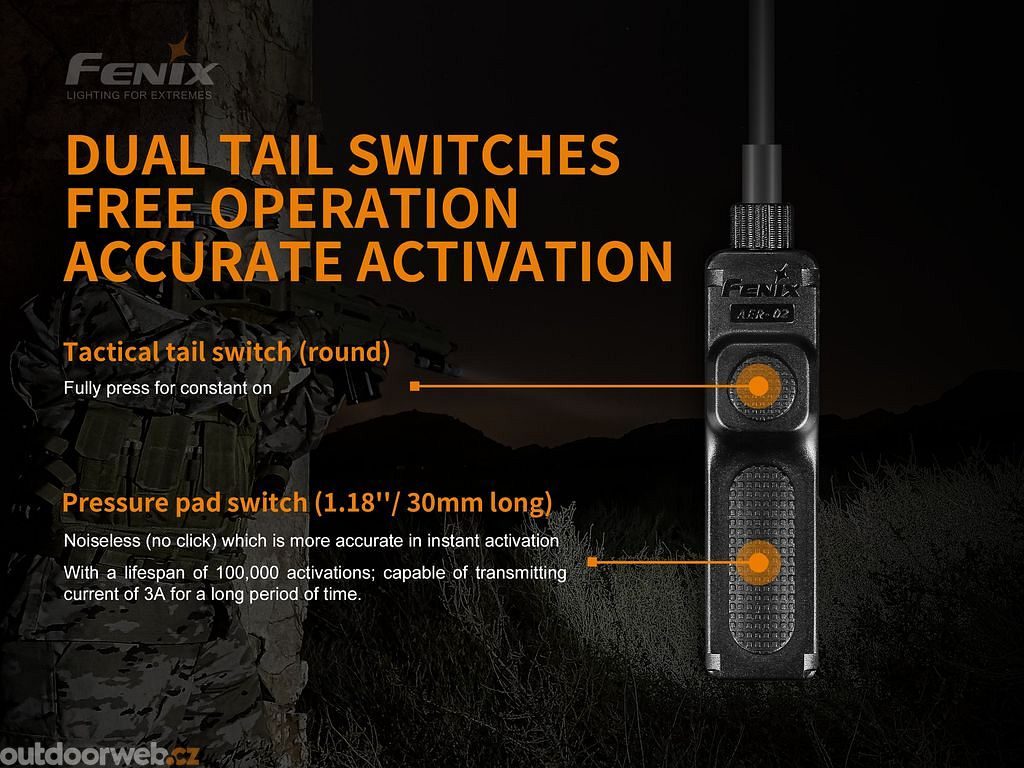

• Pressure switch located at the end of the cable with a lifetime of 100,000 actuations.
• Classic switch for permanent switching.

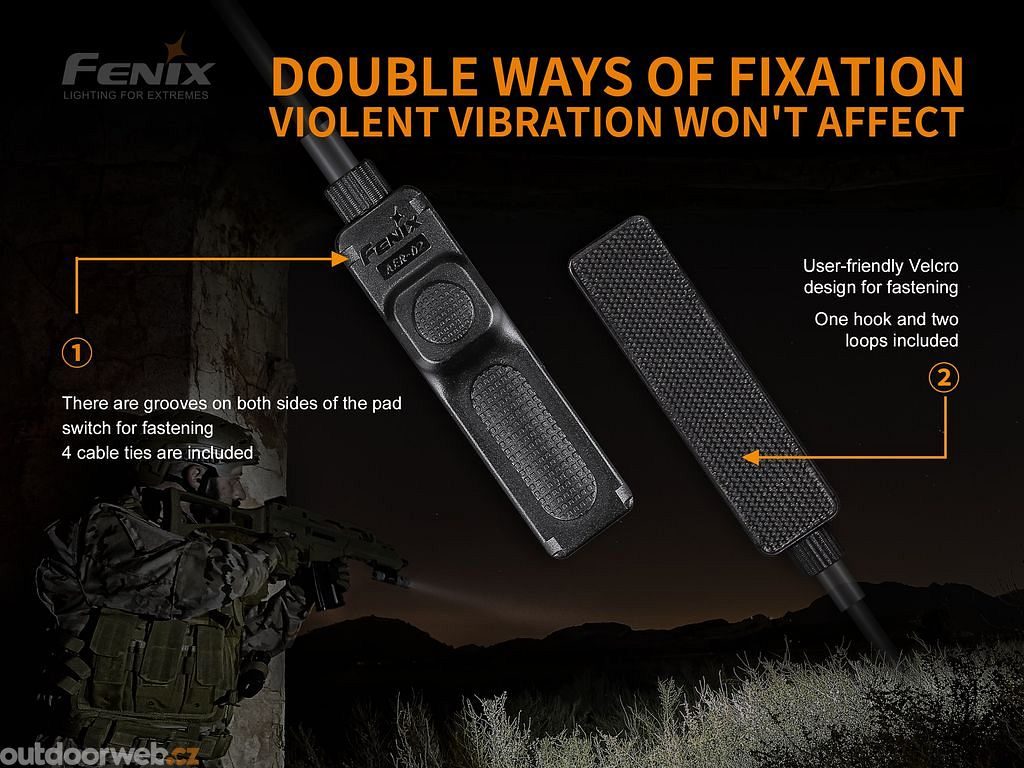

• Also included is Velcro to attach the switch to the weapon.

Compatible with Fenix FD30, Fenix FD41, Fenix PD32 XP-L, Fenix PD35, Fenix TK15, Fenix TK09, Fenix UC35, Fenix TK11 R5 (since 1.7.2010), Fenix TK21, Fenix TK22 (older version only, not TK22 V2.0), Fenix TK12, Fenix TA20, Fenix TA21, Fenix TK30.

Caution, does not fit on the following old models (they have a different thread): Fenix TK10, TK11 R2, TK16, TK20, TK20R, TK32, TA30, older version Fenix PD32 (on sale here until January 2016).

Use
Unscrew the original end cap from the flashlight and screw on this end cap with the cable switch. Place the pressure switch in your preferred position.
