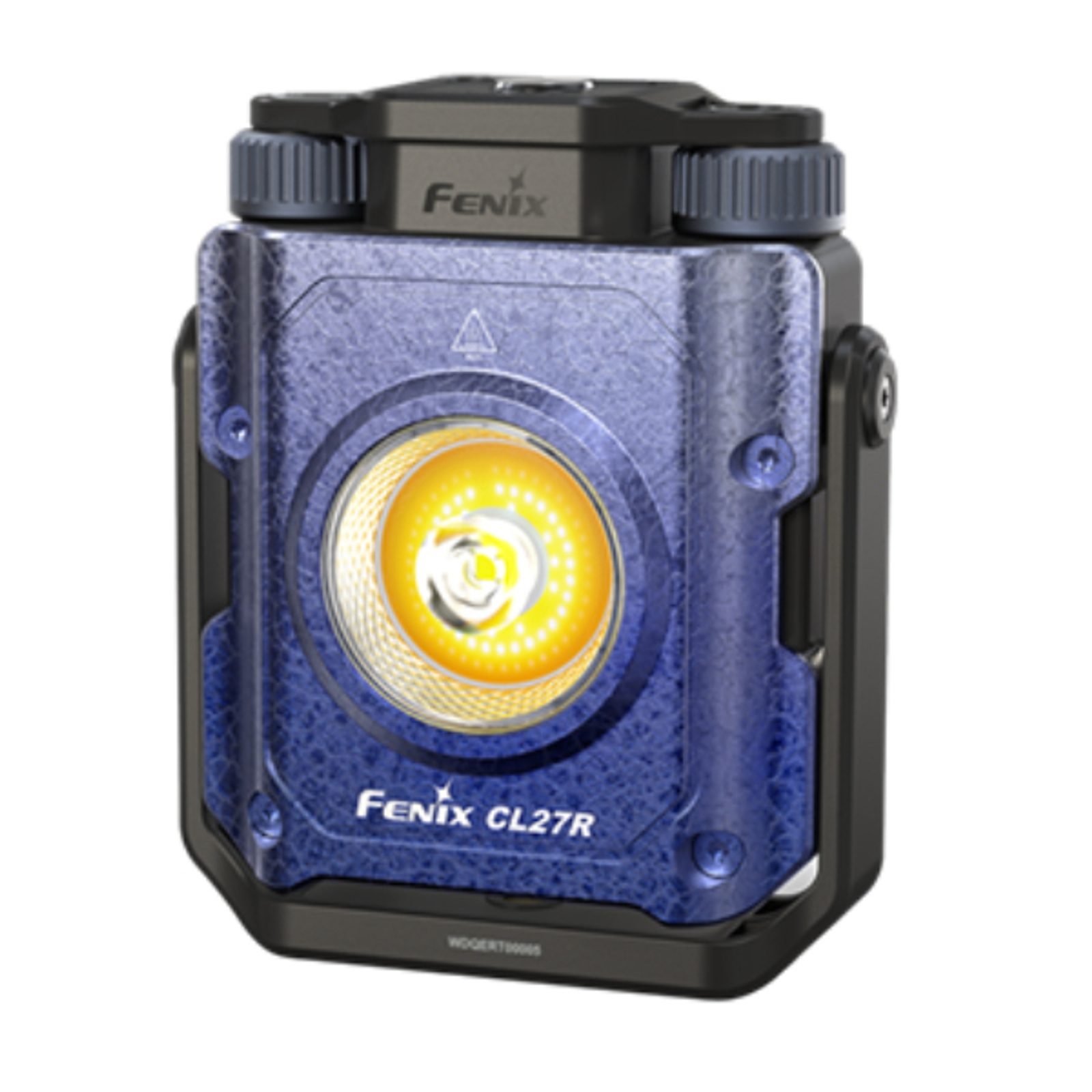

Fenix CL27R Multifunctional Rechargeable Lantern and Flashlight - This model serves as a versatile light for work, photography and home or outdoor use. It features a high-brightness COB diode with up to 1200 lumens, a wide light cone whose intensity and light temperature can be easily controlled with rotary dials.

It also includes a remote reflector with a range of 177 metres and 800 lumens, which can be combined with the wide reflector for a total output of up to 1600 lumens. It also offers a red light for special applications.

Power and durability: the lantern is powered by a 21700 Li-ion battery with a 5000 mAh capacity, charging via a USB-C connector. Its rugged and shock-resistant design with IP66 protection ensures resistance to water and drops from 1.5 meters.

Equipped with a 360° rotatable handle, built-in magnets and a tripod thread for maximum placement flexibility.

The Fenix CL27R meets ANSI/NEMA FL 1-2009 standards for reliability and quality, which includes parameters such as light output, run time, waterproof and shockproof.

Package contents: lantern, ARB-L21-5000 V2.0 battery, plastic key to loosen battery cap, USB-C cable, replacement o-ring.

Warranty: 5 years on the flashlight, 2 years on the battery

1. Uses a COB LED with adjustable light temperature from 2700 to 6500K and red chip and one Luminus SST-20 LED, both with a 50,000 hour lifetime.
2. It uses one rechargeable high-capacity Li-ion 21700 5000 mAh battery included for power.
3. The light has a memory for the set color temperature of the wide reflector and will always turn on at the last set shade.

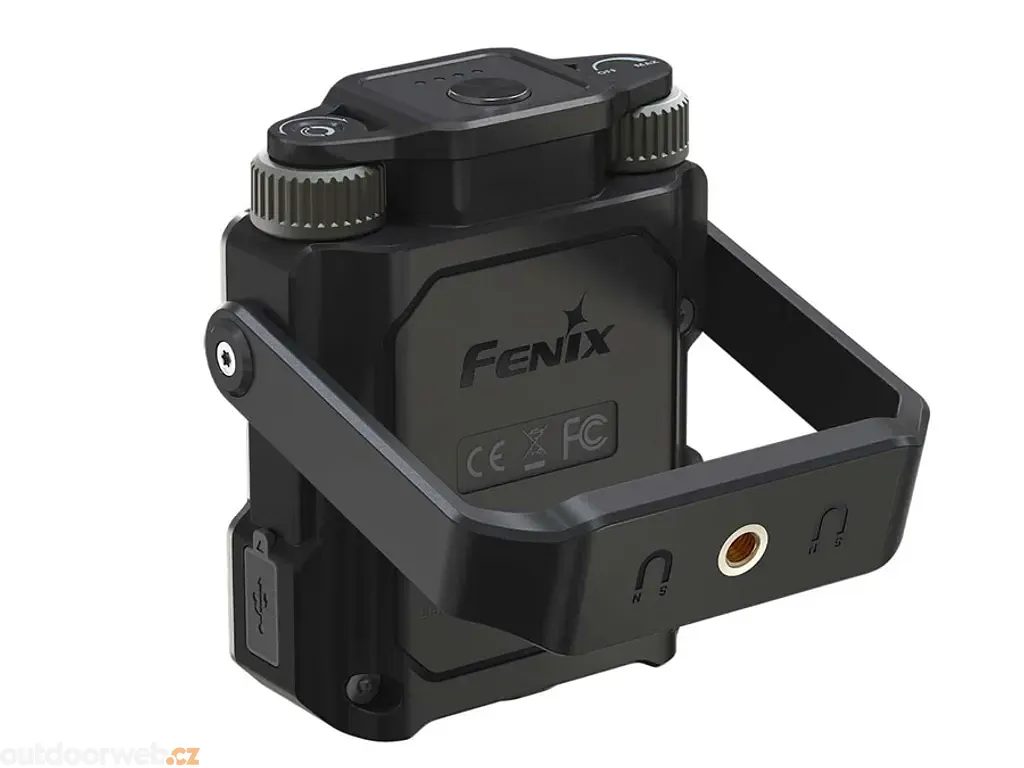

4. The light is equipped with a threaded handle for tripod mounting and an integrated magnet. The handle is rotatable through 360°.

• The range of the main reflector is 177 metres (8233 cd), the wide reflector 53 metres (690 cd).
• Charging via USB-C connector, charging time 2.5 hours.
• Battery charge indication and low voltage warning.
• Made of aluminum alloy and durable plastic, the lantern is shockproof to falls from a height of 1.5 meters.
• Waterproof to IP66 standard (heavy rain).
• Dimensions 10,9 cm x 9,2 cm x 3,9 cm.
• Weight 300 grams (including battery).

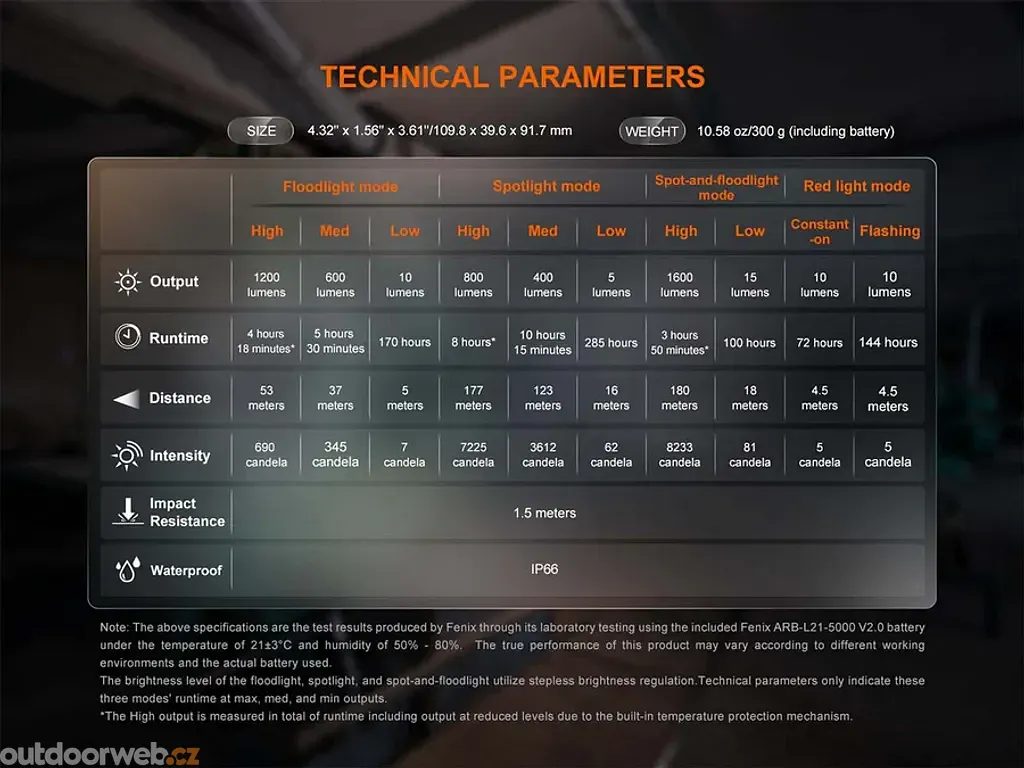

Power modes:

Long and wide cone: 1600 lumens to 15 lumens with 3.8-100 hours of runtime.
Wide cone: 1200 lumens to 10 lumens with 4.3-170 hours of runtime.
Long cone: 800 lumens to 5 lumens with 8-285 hours of runtime.
Red light: 10 lumens (72 hours) - Flashing 10 lumens (144 hours).

Specifications:

Power: 1600 lm
Range: 180 m
Max life: 285 hrs
Power: 1x 21700
Number of modes: 4
Waterproof: IP66 (heavy rain)
Light color: Infinitely Adjustable (2700-6000 K), Daytime White (5500-6500 K), Red
Light Source: COB LED, Luminus SST-20
Weight: 300 g

Using the Fenix CL27R Rechargeable Lantern

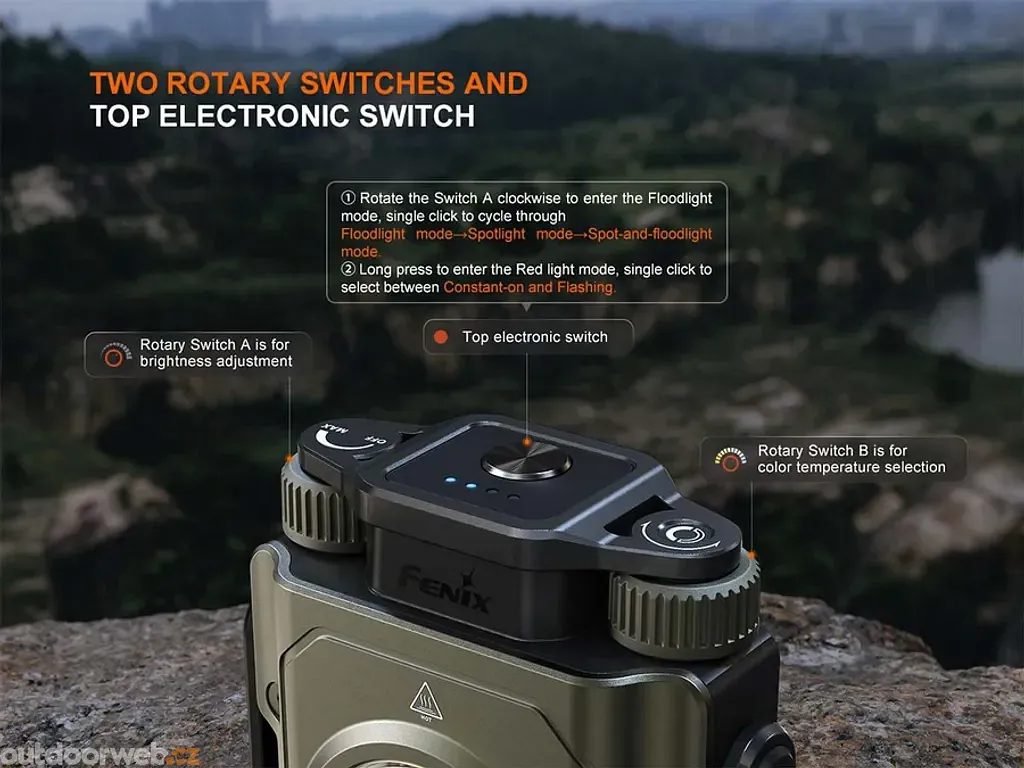

Switching on/off and changing the white light output - To switch to white light mode, turn the left hand dial clockwise. Turning it then smoothly adjusts the light output from lowest to highest. To reduce the output, turn the left hand dial counterclockwise. To turn it off, turn the left knob counterclockwise to the extreme position.
Switching light modes - switch the lantern on clockwise with the left knob, it will always switch on in wide cone mode. The top button can then be pressed to cycle between the wide cone - far cone - far and wide cone light modes.
Changing the shade of the wide cone light - When the lantern is switched to wide cone or combination cone, the shade of the white light of the wide cone can be changed continuously by turning the right control knob from 2700 to 6500 K. The shade of the light of the wide cone is 5700 K and cannot be changed. The lantern remembers the set light shade of the wide light cone even after it is switched off.
Red light - When the lantern is switched off, the red light is switched on and off by holding the electronic switch for 0.5 s. Further presses of the button cycles through the red light modes.
Battery change - Use the included plastic key to loosen the battery cap by turning it counterclockwise. Insert the battery with the plus side facing inside the lantern and then tighten the cap fully again. Caution: screwing the battery cap with a sharp tool may cause scratching.
Battery charge indication - after a short press of the button or after switching on the lantern, the LED charge indicator will activate for 3 seconds. Four lit LEDs indicate that the battery is 80-100% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates that the battery is less than 20% charged.
Low Battery Warning - If the battery voltage drops below the set level, the lantern will automatically switch to a lower mode until it reaches the lowest power level. When low power is reached, the battery charge indicator will flash to remind you to recharge or replace the battery.

Charging the Fenix CL27R Lantern
Remove the dust cap and plug the USB-C charging cable into the lantern's charging port. Replace the dust cap when charging is complete. Normal charging time is 2.5 hours for a fully discharged lantern. The lantern can also be used while charging. During charging, the indicators flash from left to right, after a full charge all four will remain permanently lit.

Caution
Do not disassemble the sealed parts yourself, this will violate the warranty.
Remove the battery from the lantern if you will not be using it for an extended period of time, or loosen the battery cap half a turn.
Regular cleaning of the electrical contacts ensures trouble-free operation of the lantern, as dirty contacts can cause the lantern to flicker, glow intermittently, or even not glow for the following reasons:
- The battery is dead. Charge it or replace it with a charged one.
- The electrical contacts inside the flashlight are dirty, clean them with a cotton swab dipped in alcohol.
