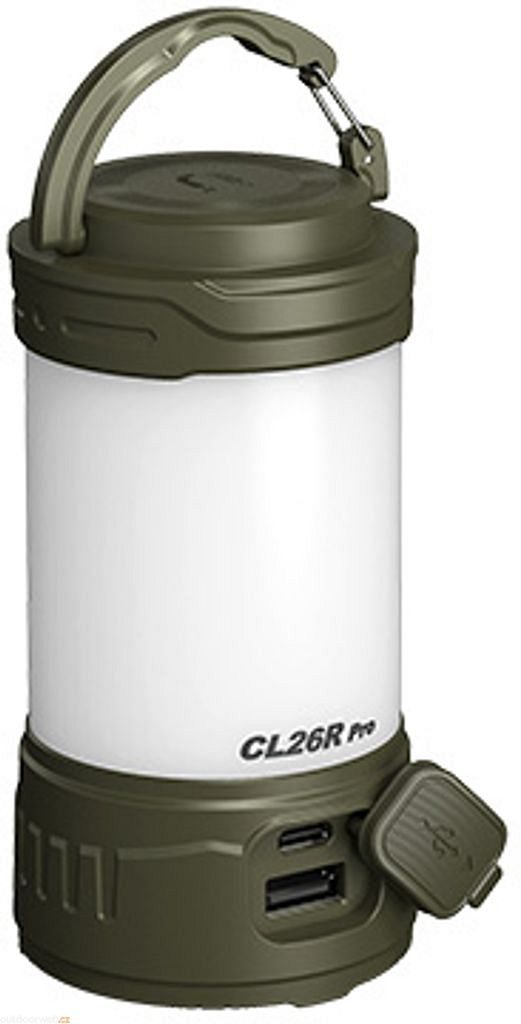

Fenix CL26R PRO is a practical portable rechargeable lantern that you can use to light a room, tent, campsite, caravan, cottage, boat or workbench. It also features a power bank function, so it can be used to recharge other USB devices. The lantern offers 360° lighting and a bottom light; the individual lighting modes are switched with a rotary control. Both lighting types can also be combined to achieve a total output of up to 650 lumens.

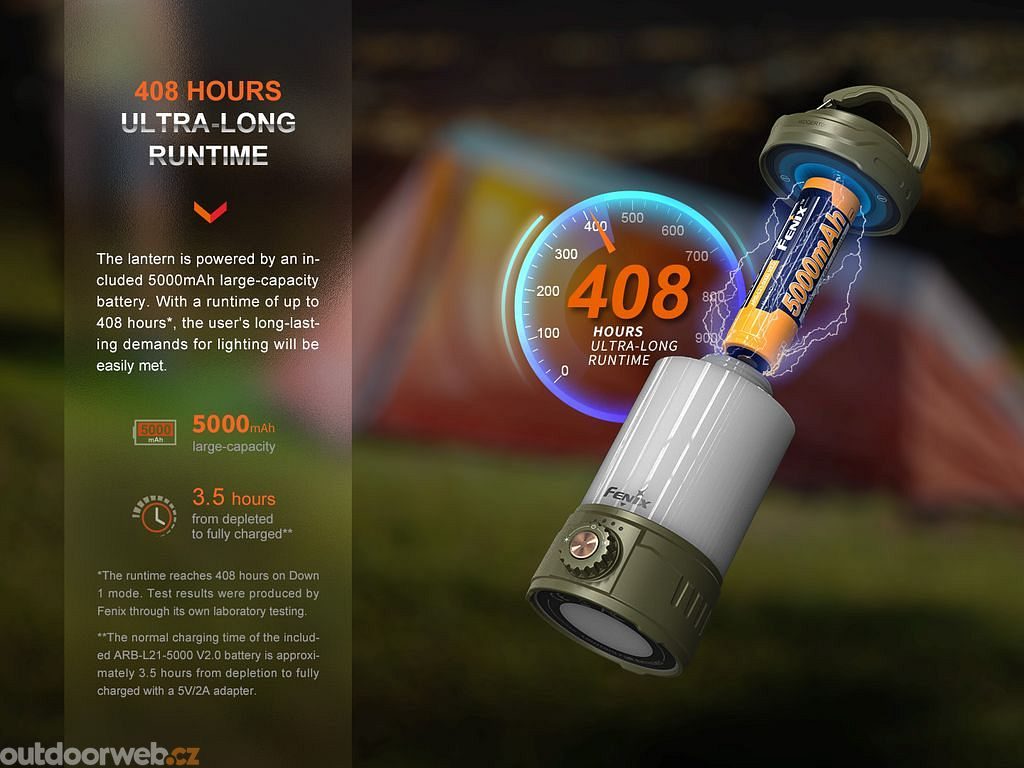

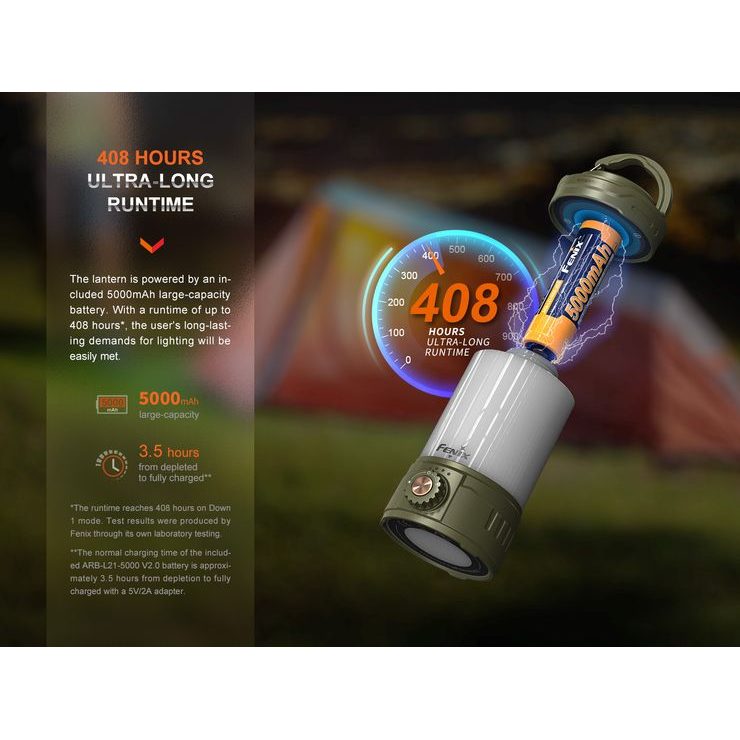

The CL26R PRO is powered by a Li-ion rechargeable battery type 21700 with a capacity of 5000 mAh (included), which charges directly in the lantern via a USB-C connector and provides up to 408 hours of runtime in the lowest mode. There is also a red light that does not disturb your eyes’ dark adaptation.

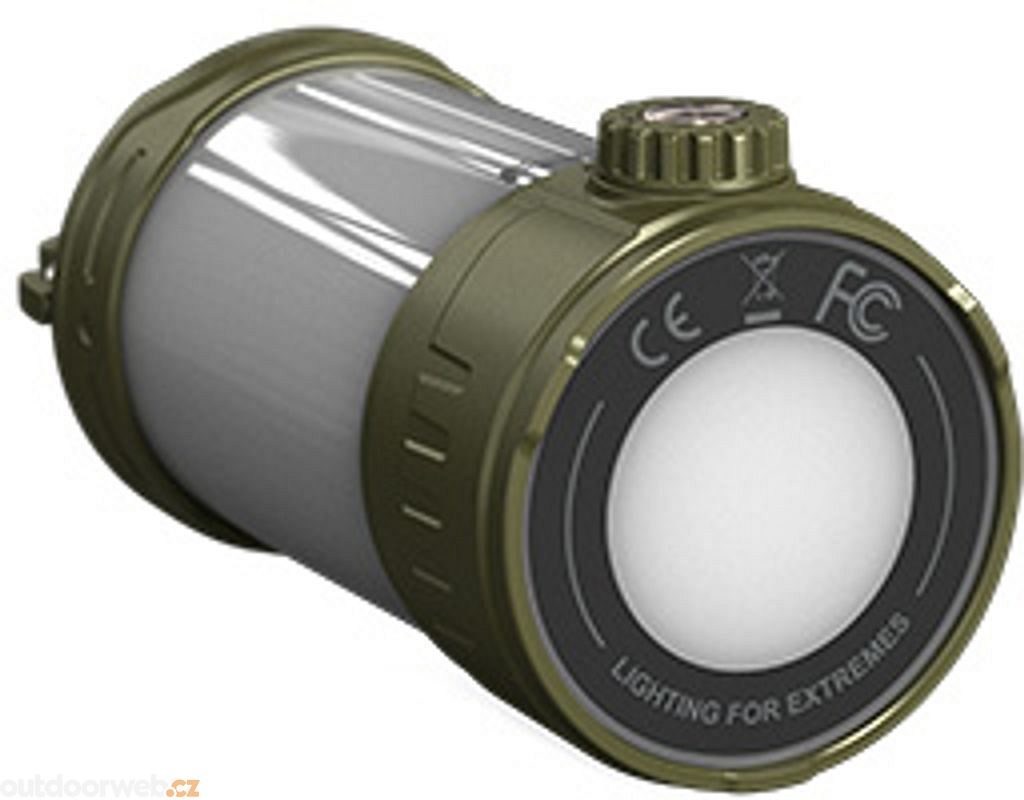

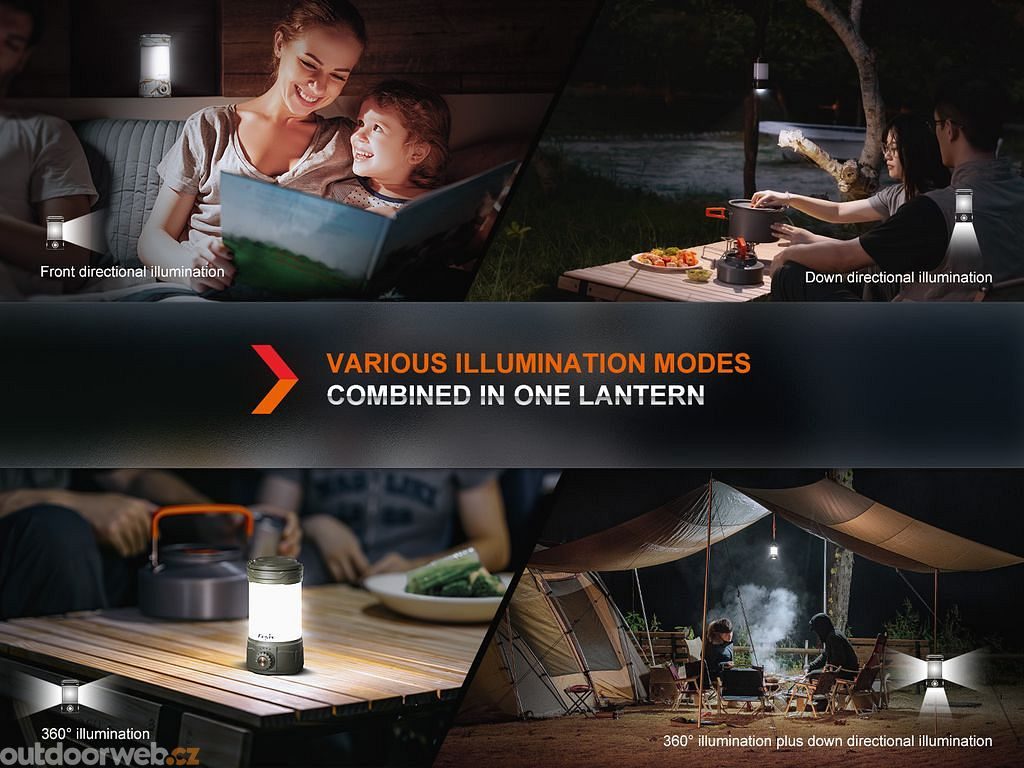

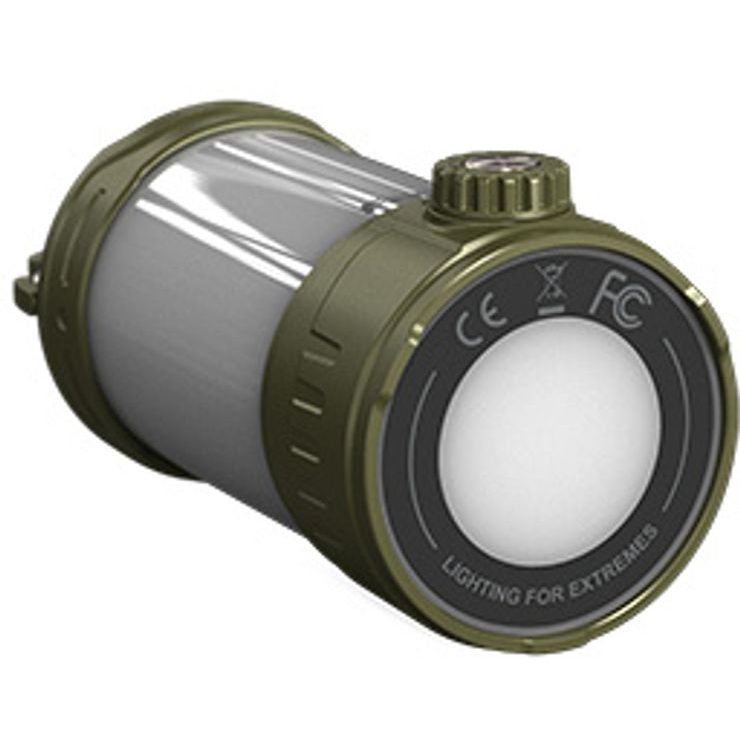

The front one-way light and the bottom light are very practical features that significantly save energy. They are especially useful in situations where 360° all-round lighting is not needed.

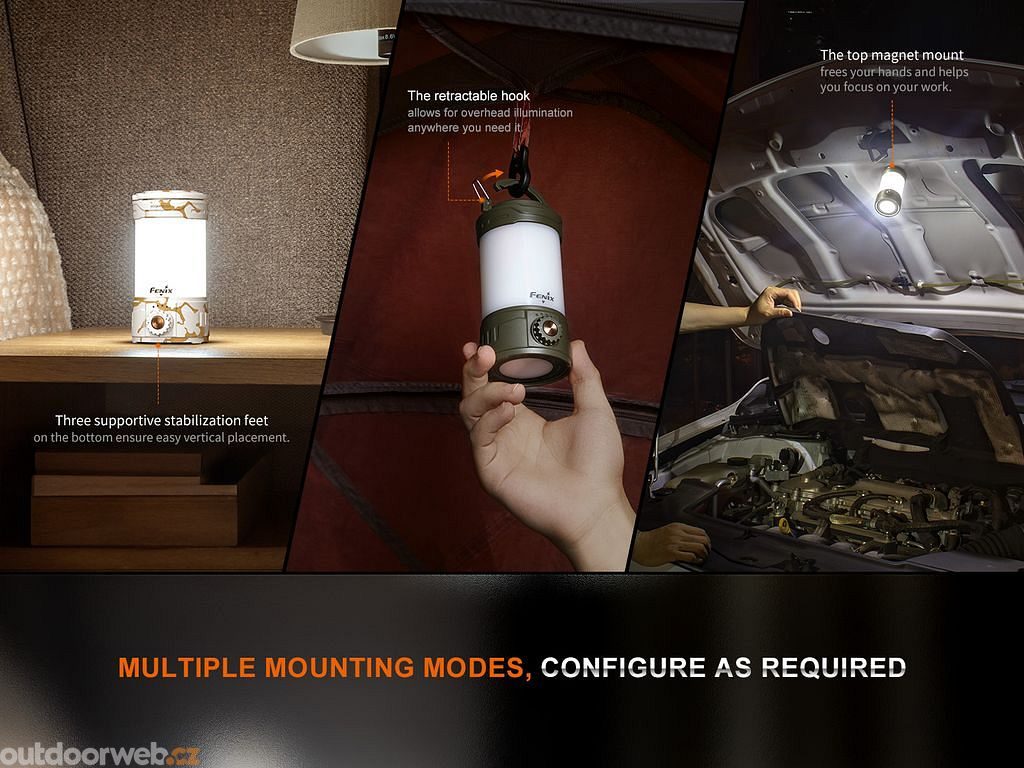

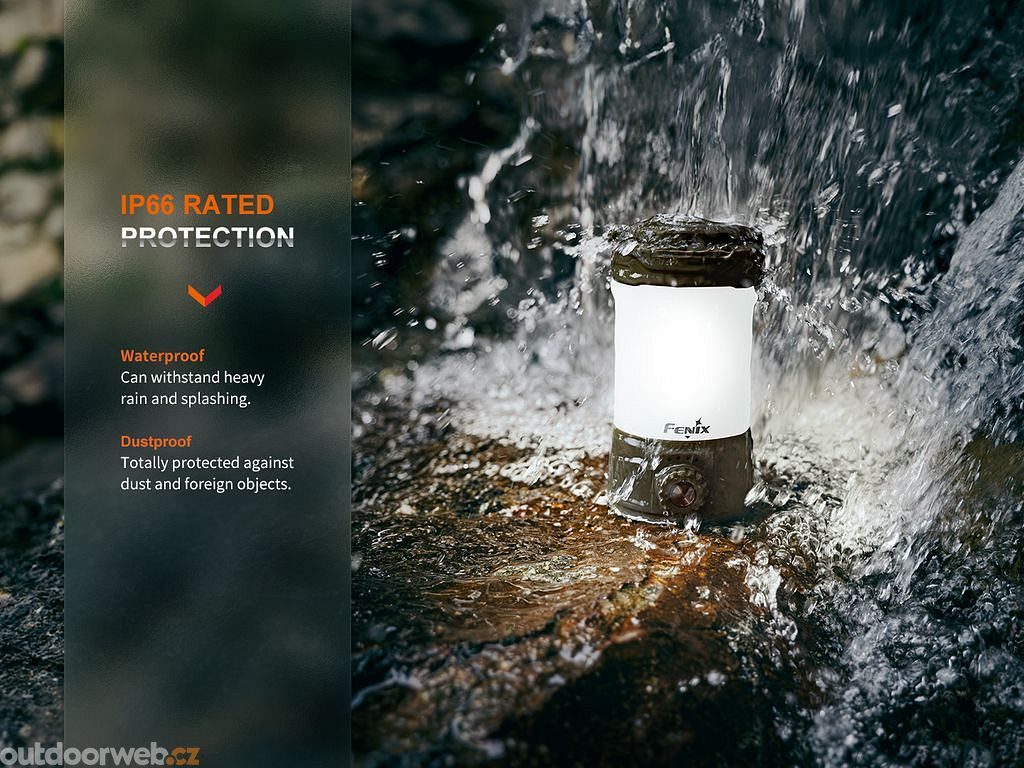

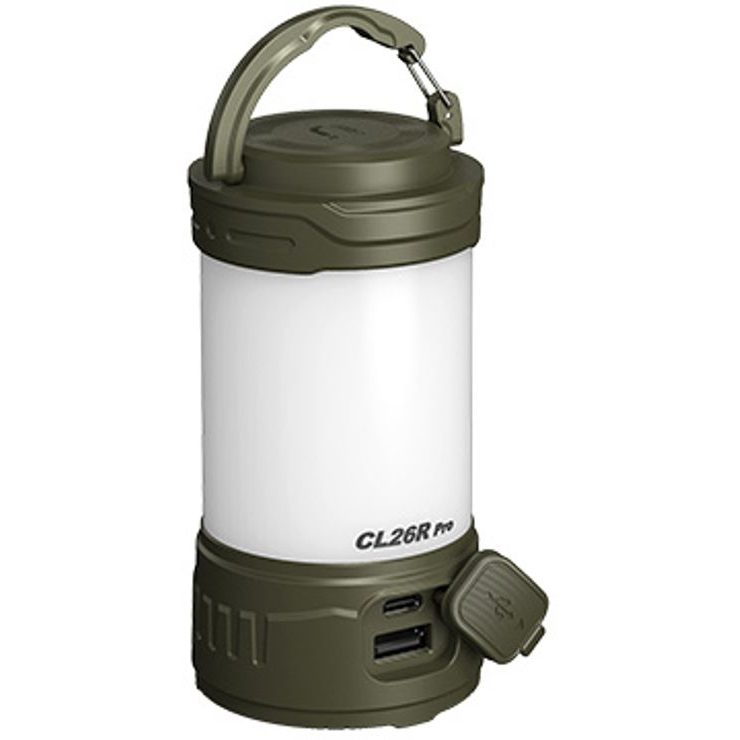

Thanks to its durable, impact-resistant construction with an IP66 rating, the light can be safely used even in adverse weather (heavy rain). The top of the lantern is equipped with a hanging loop that can be opened like a carabiner and a strong neodymium magnet, so it can be easily hung up or attached to anything made of iron. Thanks to its compact dimensions, the lantern is particularly suitable for camping and hiking; you will also use it in a caravan, on a boat or at a cottage.

All torch parameters (luminous flux, battery runtime, waterproofness, beam distance and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

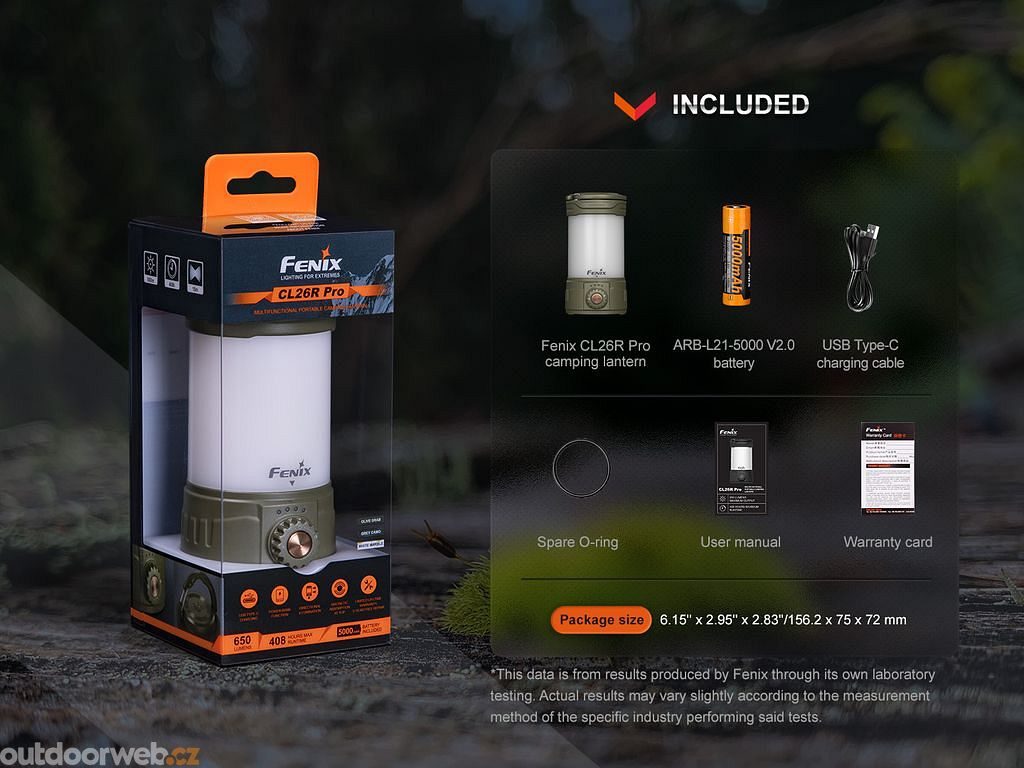

Package contents: lantern, Fenix ARB-L21-5000 V2.0 battery, spare O-ring and USB-C cable.

Warranty: five years for the lantern, two-year warranty for the battery.

1. The light source is high-brightness SMD LEDs and a red LED.
2. The 360° and bottom lighting modes can be combined to achieve a total output of up to 650 lumens.
3. Powered by 1x 21700 Li-ion battery with a capacity of 5000 mAh (included); any 21700 battery from our range can be used as a spare.
4. Power bank function with a USB-A output connector for charging other portable electronics with USB charging.

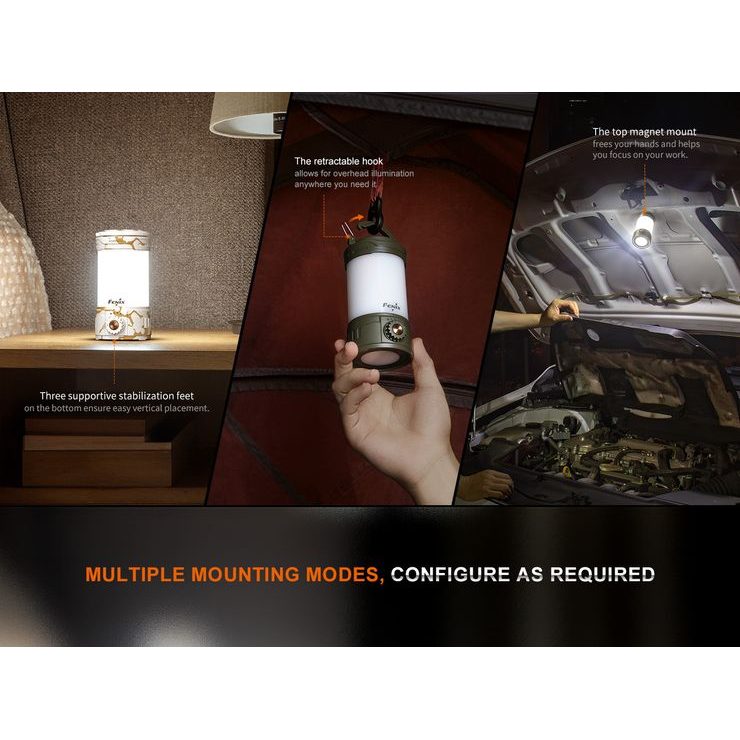

5. Top fitted with a hanging loop with carabiner function and a neodymium magnet for attaching to anything made of iron.

• Six 360° lighting modes
• Three bottom-light modes
• Electronics with extended runtime function and protection against incorrect battery insertion.
• Charging via USB-C connector.

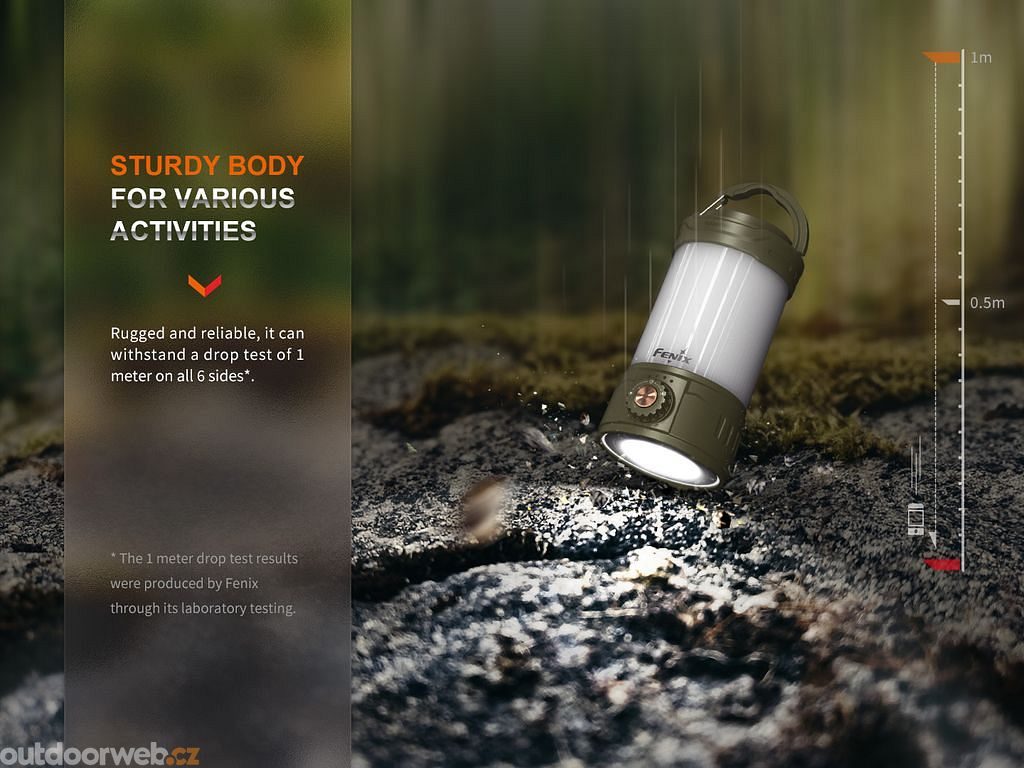

• Made of durable plastic; the lantern is impact-resistant to drops from a height of 1 metre.

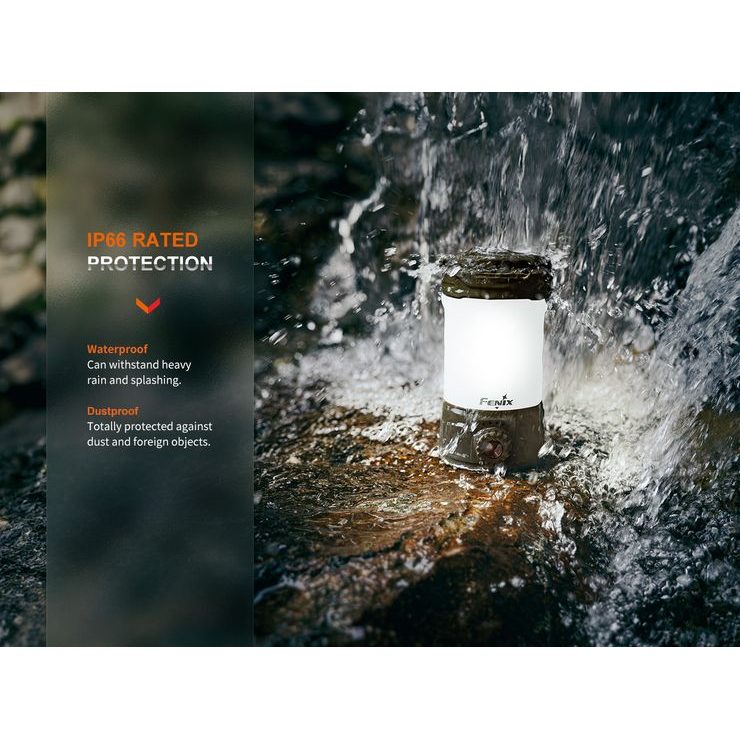

• Water-resistant to IP66 standard (sprayed with powerful jets of water from all directions).
• All-round diffuser creates a wide, even beam with a range of up to 15 metres.

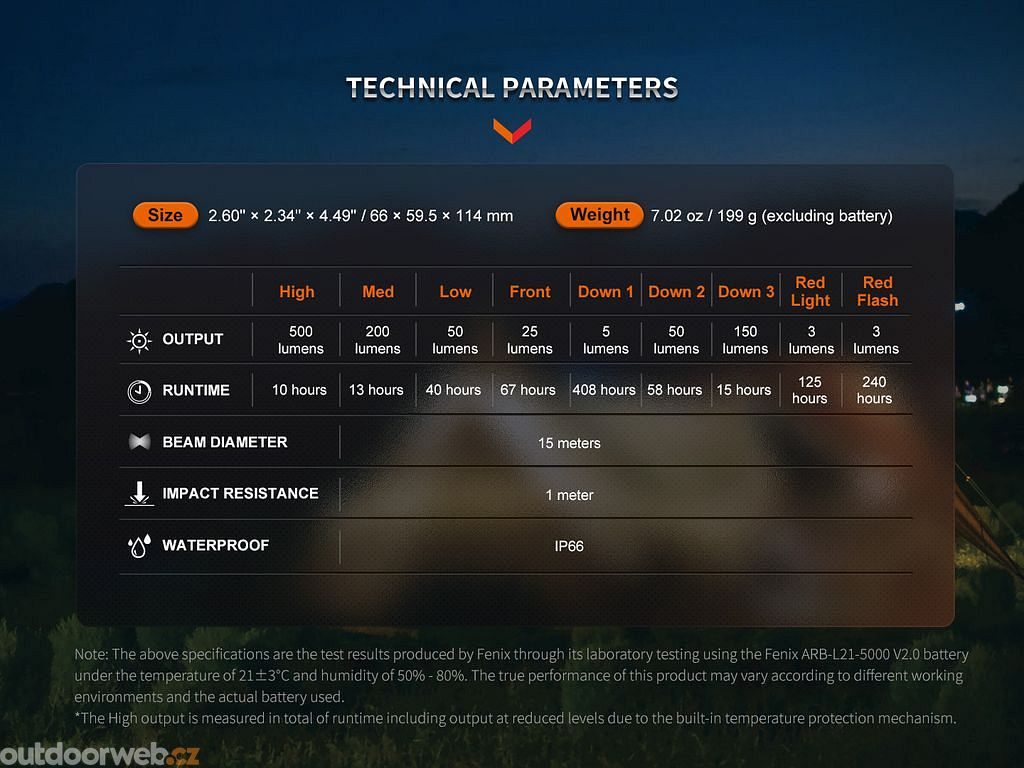

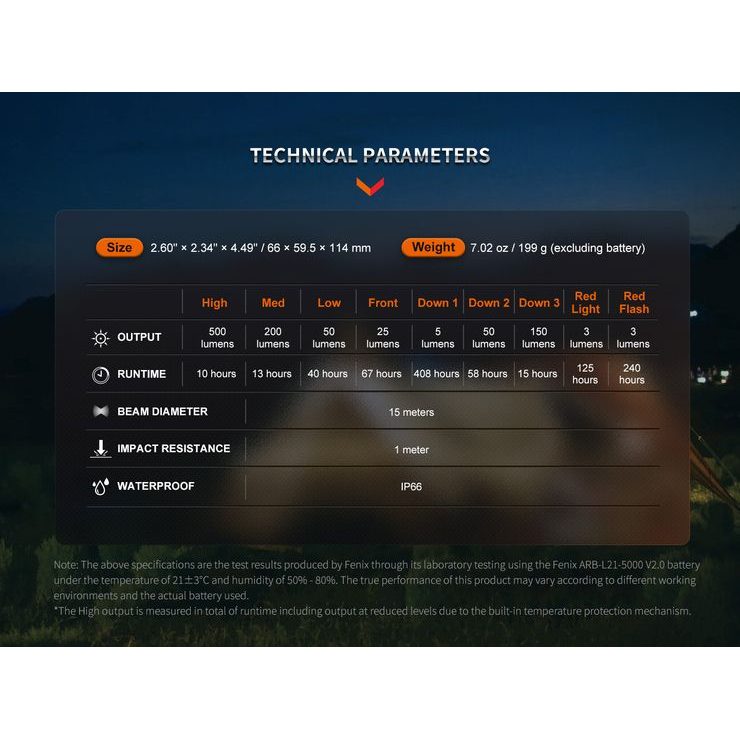

Lighting modes:

Six 360° lighting modes: 500 lumens (10 hours) -> 200 lumens (13 hours) -> 50 lumens (40 hours) -> one-way lighting 25 lumens (67 hours) -> red light 3 lumens (125 hours) -> red flashing 3 lumens (240 hours)
Three bottom-light modes: 150 lumens (15 hours) -> 50 lumens (58 hours) -> 5 lumens (408 hours).

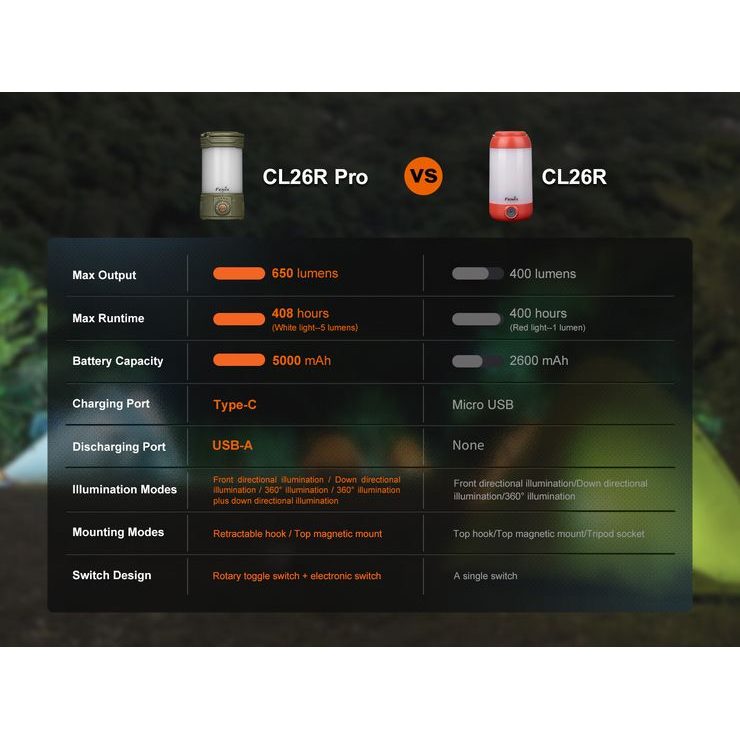

Specifications:

Luminous flux: 650 lm
Beam distance: 15 m
Material: durable plastic

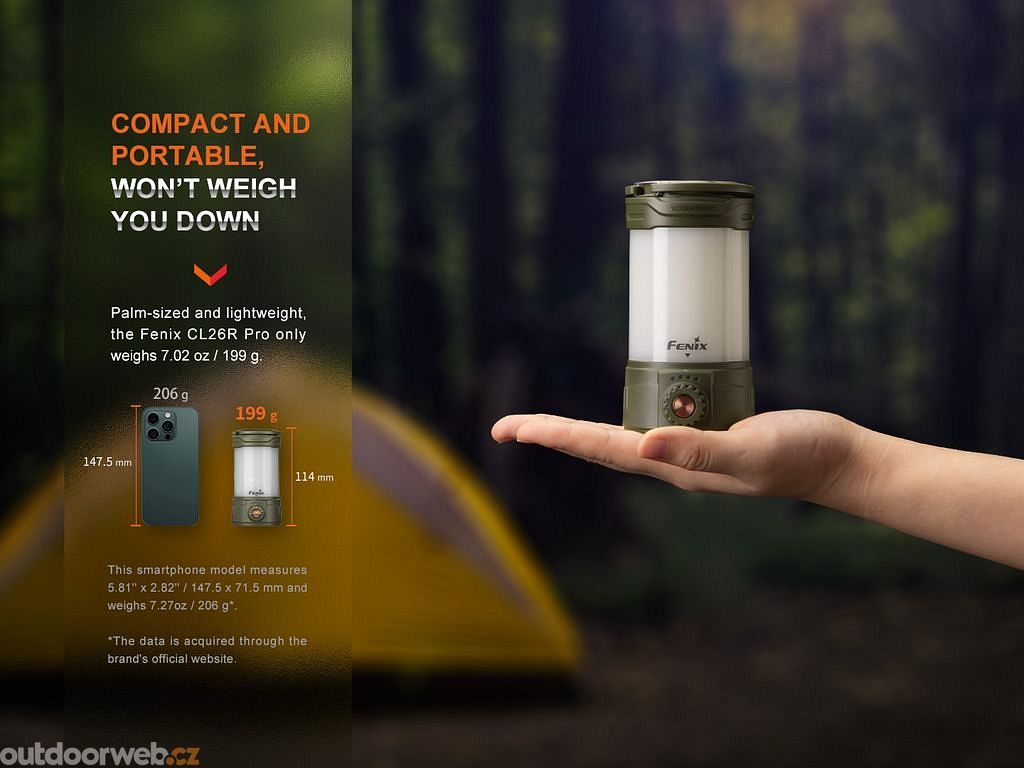

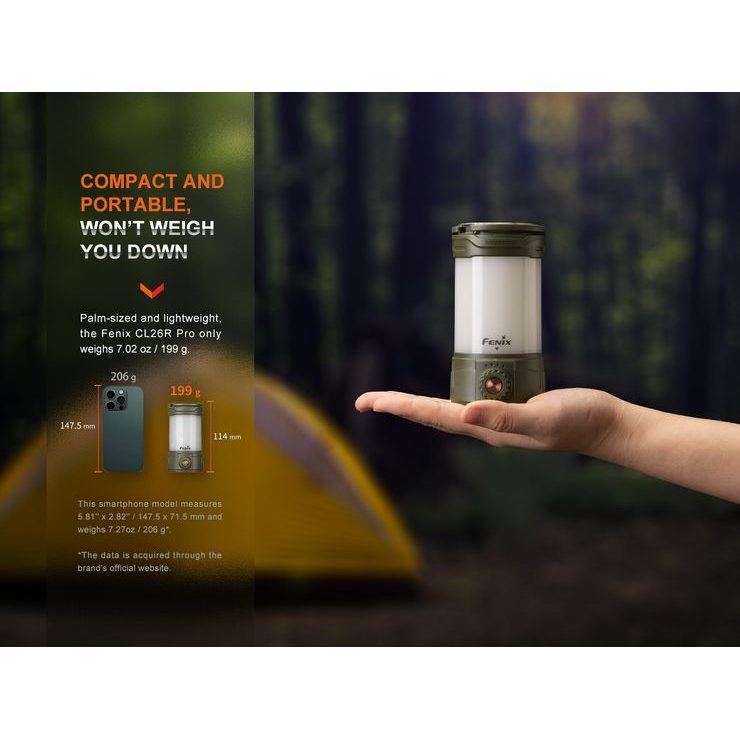

Dimensions: 6 cm (diameter) x 6.6 cm (at the widest point incl. control) x 11.4 cm (height).
Weight: 272 grams (including battery), 199 grams (without battery)
Max runtime: 408 h
Power source: 1x 21700
Number of modes: 9
Waterproof rating: IP66 (heavy rain)
Light colour: Daylight white (5500-6500 K), Red
Light source: SMD LEDs
Weight: 272 g

Using the Fenix CL26R PRO
From the factory, there may be an insulating cover inside the lantern on the battery. Remove it from the battery before first use.
Turning the switch clockwise turns on the main 360° light. Turning the switch anti-clockwise turns on the bottom light. Turning the switch further in the selected direction switches the lighting modes of the light that is on. Turn the switch to the middle “off” position to switch the lantern off again.
Combining the main and bottom light - the main and bottom light can be combined. Turn on one of them with the rotary switch to the required output mode. The second light is then switched on by holding the electronic switch for 0.5 s; its modes can be switched further by pressing the button.
When the lantern is off, the red light is switched on and off by holding the electronic switch for 0.5 s. When it is on, press the button to switch between red-light modes.
Battery charge status indication - a short press of the button (the lantern must be off) activates the LED battery status indicator above the switch. Four lit LEDs mean the battery is charged to 80-100%, three lit 60-80%, two 40-60%, one 20-40%, and one flashing indicates the battery is charged to less than 20%.

Power bank function
Flip open the dust cover and insert the USB cable into the USB Type-A discharge port on the light, then connect the other end of the cable to the USB device being charged. If the lantern is on, the power bank function activates automatically when the USB cable is connected. If it is off, press the electronic switch; the indicators will step down from right to left and show the status. During discharging, the highest output cannot be used and the main and bottom light modes cannot be combined. After charging is complete, do not forget to seal the dust cover. If the battery voltage is too low, the power bank function will switch off.

Charging the Fenix CL26R PRO lantern
To charge the lantern, flip open the rubber dust cover. Connect the lantern using the included USB-C cable to a computer, a mains USB adapter or a car USB adapter. A standard mobile phone charger or a power bank can also be used for charging. During charging, the indicator LEDs above the switch flash and show the charging progress. After charging is complete, they remain lit.
The battery does not suffer from memory effect, so it can be recharged at any time and it is not necessary to wait until it is discharged. Charging a fully discharged battery takes approx. 3.5 hours (depending on the power of the charging source used).
During charging, the lantern can only be switched on in 5, 25 and 50 lumen modes.

Warning
Do not disassemble sealed parts yourself; this will void the warranty.
If the torch flashes, does not switch to higher output modes, or does not turn on, it may be due to one of the following reasons:
- The battery is almost discharged – recharge it.
- The electrical contacts are dirty – clean them with a cotton swab soaked in alcohol.
- The battery cap is loose; tighten it.
