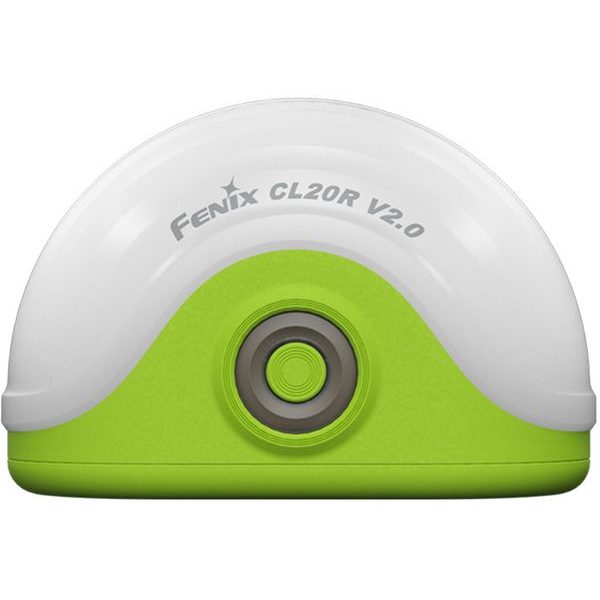

Looking for a reliable light for camping, evenings on the patio, fishing, or in a tent? The Fenix CL20R V2.0 is a compact rechargeable lantern that provides plenty of light for work and relaxing outdoors. Neutral white light up to 300 lumens provides natural color rendering that doesn’t strain the eyes, and thanks to the hemispherical diffuser, it shines pleasantly in all directions.

In addition to white light, it offers RGB modes to set the mood, power from a high-performance Li-ion battery, the option to use AAA batteries, and a durable IP65-rated construction. A practical hanging loop, a strong magnet, and low weight make it the ideal companion for all outdoor activities.

1. Versatile lighting performance
   The lantern provides up to 300 lumens in a natural, neutral light tone for comfortable illumination of a tent, room, or workspace.
2. Practical features and durability
   IP65 rating, USB-C charging, a magnet, a hanging loop, and dual power options ensure worry-free use in any environment.

• Luminous flux up to 300 lumens
• Neutral white light 3700–4200 K
• RGB modes for ambiance
• Battery life up to 320 hours
• AAA emergency power option
• IP65 water and dust resistance
• 1.5-meter drop resistance
• Strong neodymium magnet
• Fold-out hanging loop
• Weighs only 122 grams

Specifications:

Output: 300 lm
Beam distance: 12 m
Max. runtime: 320 h
Power supply: ARB-LP1900 / 3× AAA
Number of modes: 13
Light: neutral white, red, RGB
Water resistance: IP65
Light source: SMD LED 2835 + RGB LED 2020
Weight: 122 g
Dimensions: 8 × 4.8 × 5.4 cm
Accessories: rechargeable battery, USB-C cable, O-ring

Using the Fenix CL20R V2.0
The battery may come with an insulating cap from the factory. Remove it before first use.
Turning on/off and switching power modes - To turn on the flashlight in white light, hold the switch for 0.5 seconds; to activate color modes, press the switch twice quickly. To activate the light ring, press the switch once and then again within 3 seconds. The individual light modes of the selected lighting mode are switched by pressing the switch. The flashlight turns off by holding the switch for 0.5 seconds.
Switching lighting modes - Sleep timer function: If the flashlight is in white light mode, quickly press the switch twice to activate the sleep timer function. The light ring on the switch will glow purple, and the flashlight will turn off automatically after 20 minutes. If the flashlight is in a color mode or the color ring is active, you can switch between these two modes by double-pressing the switch. If the smooth color-changing mode is active, double-pressing the switch will pause the current color or resume the smooth color change.
Memory for the last set mode - The flashlight has a memory and always turns on in the last set white light mode, with the exception of the highest mode. Instead, it will turn on in the second-highest mode.
Battery Replacement - Pull the hanging loop on the bottom of the lantern and unscrew it clockwise to open the battery cover. Insert the battery according to the marked polarity, then screw the battery cover back on.

Charging
Lift the dust cover and plug the USB-C charging cable into the flashlight’s charging port. Once charging is complete, reseal the dust cover. The typical charging time is 2.5 hours. The lantern can be used in all modes while charging. During charging, the light ring on the switch flashes green counterclockwise. When fully charged, it will glow green. To extend battery life, we recommend charging the lantern when the charge level is between 50% and 25%. If the charge level drops below 25%, immediate charging is recommended. Do not connect the charging cable to the lantern when using AAA batteries.
Battery Status Indicator - Each time you turn the lantern on, or press the switch while the lantern is off, the battery status will be displayed on the switch’s light ring for 3 seconds. If the ring glows green, the battery is charged to more than 85%. A green flash indicates 50–85% capacity. If it glows red, the battery is charged to 25–50%. A red flash indicates that less than 25% of the battery capacity remains. This feature is active only with the original Fenix ARB-LP1900 battery.
Intelligent Overheating Protection - When the flashlight is used for an extended period on high output mode, a large amount of heat accumulates. When the temperature reaches 50 °C or higher, the output automatically decreases by a few lumens to lower the temperature. When the temperature drops below 50 °C, the output gradually increases again.
Low Battery Warning - If the battery voltage drops below a set level, the ring around the switch will flash red to remind you to recharge the battery.

Warning
Do not disassemble sealed parts yourself, as this will void the warranty.
Remove the battery to prevent accidental activation if the flashlight is placed in an enclosed and flammable environment, such as pockets and backpacks!
If the flashlight is flashing, does not switch to higher power modes, or does not turn on, it may be due to one of the following reasons:
- The battery is dead – charge it.
