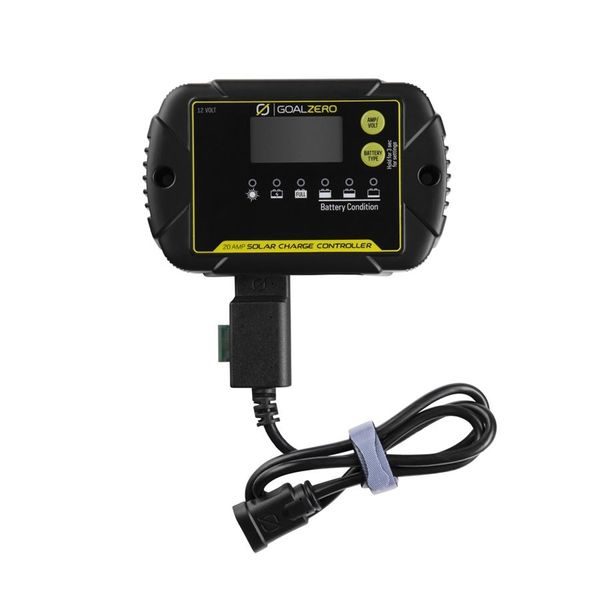

GOAL ZERO 20A CHARGE CONTROLLER - monitoring equipment

  • 99.44 €
  • 110.49 €
  • shipping in 3 days

  • 20A Charge controller is used to connect Goal Zero solar panels with conventional batteries and accumulators. This voltage controller comes with a cable to connect to the APP port of the Goal Zero panels. The regulator is IP65 certified and can be used in dusty and humid environments.

    It is suitable for use with Nomad 200, Boulder 200 Suitcase and Ranger 300 Suitcase panels. To connect to the 12V battery, you need to purchase the "SPADE to SAE cable" and "SAE to ring terminal adapter" or "SAE to alligator clip adapter" cables. Controller cannot be used to charge batteries from Yeti X station chargers.

    Functions with lead acid, gel, calcium, LiFePO4, AGM and LTO 12V batteries. Does not include output cables, we recommend using a fused cable ( KABEL SPADE TO SAE) to plug into your battery to prevent possible damage to the Charge Controller. Connect this cable to your battery using either the SAE TO RING TERMINAL adapter or the SAE TO ALLIGATOR CLIP adapter.

    Wiring Example: Boulder Solar Panel 200 Trunk --> 20A Charge Controller --> SPADE to SAE cable --> SAE TO RING TERMINAL adapter --> Your battery. Included: cable with SPADE to HPP (High power pole) connector.

    Specifications:
    Dimensions: 15.5 x 9.91 x 2.6 cm
    Weight: 499 g
    Certified for durability: IP65
    operating temperature: -25 to 50 °C
    weight 499 g

    Electrical specifications:

    • Goal zero solar panel rated current: 20 A
    • Normal solar cell array input voltage: 15-22 V
    • Max. 25 V (no-load output):25 V
    • Minimum operating voltage of the control unit on the solar or battery side: 8 V

    Charging Characteristics:

    Initial voltage at 25 °C : 3-10 V
    Charging voltage at 25 °C:

    • LTO battery - 14.0 V
    • Gel battery - 14.1 V
    • LiFePO4 battery - 14.4 V
    • AGM battery - 14.4 V
    • Lead battery - 14.7 V
    • Calcium battery -14.9 V

    Balancing voltage at 25 °C

    • Lead or calcium battery - 15.5 V

    Floating voltage at 25 °C:

    • Gel, AGM, lead acid, calcium battery - 13.6 V
    • LTO and LiFePO4 - 13.4 V

    Battery temperature compensation factor: -24 mV/°C

    Protection:
    Surge or short-circuit protection.
    No reverse current from the battery to the solar panel at night.
    Overheating protection at 65°C charging
