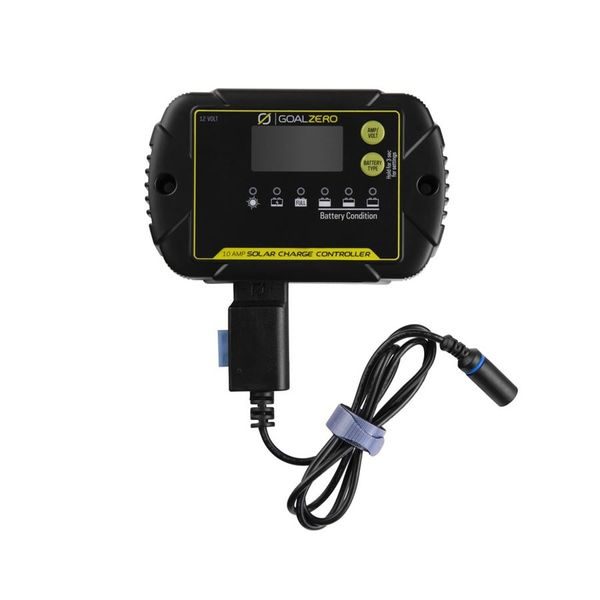

GOAL ZERO 10A CHARGE CONTROLLER - monitoring equipment

10A Charge controller is used to monitor and control the solar output for 12V batteries. This voltage controller comes with a cable to connect to the APP port of the Goal Zero panels. The controller meets IP65 rating certification and can be used in dusty and humid environments.

10A Charge Controller is suitable for use with Nomad 50, Nomad 100, Boulder 50, Boulder 100,Boulder 100 case panels. To connect to the 12V battery, you need to get the "SPADE TO SAE CABLE" and "SAE to ring terminal adapter" or "SAE to alligator clip adapter" cables. Controller cannot be used to charge batteries from Yeti X station chargers.

10A Charge Controller works with Lead Acid, Gel, Calcium, LiFePO4, AGM and LTO 12V batteries.

10A Charge Controller does not include output cables, we recommend using a fused cable (SPADE to SAE cable) to plug into your battery to prevent possible damage to the Charge Controller. Connect this cable to your battery using either the SAE TO RING TERMINAL adapter or the SAE TO ALLIGATOR CLIP adapter.

Wiring example: Boulder 100 Solar Panel Trunk --> 10A Charge Controller --> SPADE to SAE cable --> SAE TO RING TERMINAL adapter --> Your battery.

Included: SPADE cable with 8 mm connector

Electrical Specifications:
Rated current of Goal zero solar panel: 10 A
Normal input voltage of solar cell array: 15-22 V
Max. 25 V
Lowest operating voltage of the control unit on the solar or battery side
Minimum:br />Calcium battery -14.9 V

-Balancing voltage at 25 °C
Lead or calcium battery - 15.5 V

-Floating voltage at 25 °C:
Gel, AGM, lead-acid, calcium battery - 13.6 V
LTO and LiFePO4 - 13.4 V

-Compensating battery temperature coefficient: -24 mV/°C

Protection:
Surge or short circuit.
No reverse current from the battery to the solar
panel at night.
Overheating protection at 65°C charging

Specifications:
Dimensions: 15.5 x 9.91 x 2.6 cm
Resistance rating.
